LED-KING ZigBee 3.0 Phase Cut Dimmer

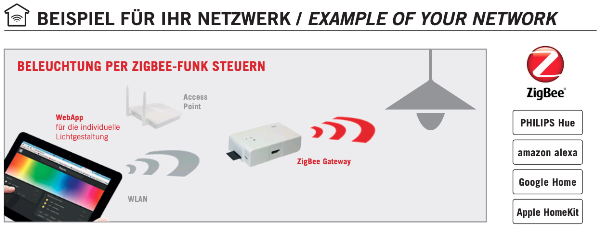

For installation in switch box (behind push button or switch converted to push button), max. 400W (LED 200W) dimmable, dimming via Smarthome integration (Google, Alexa, Hue ect.) or with push button (push dimming). Installation in luminaires also possible, but then only dimmable and switchable via ZigBee. Please note that some Smarthome systems require a bridge. Only for indoor applications! CAUTION! Incorrect connection is verifiable and leads to total failure and is excluded from the warranty. ZigBee AC phase control dimmer based on the latest ZigBee 3.0 protocol, 100-240VAC wide input and output voltage, Supports resistive loads and capacitive loads, 1 channel output, up to 400W, input and output with screw terminals, safe and reliable, IP20The wireless lighting control of your luminaire, is a ZigBee wireless standard certified control device for dimmable luminaires. For control with a mobile device (e.g. phone, tablet PC), a gateway and the corresponding app is required, which realizes the interface between the WLAN world (operator side) and the ZigBee world (luminaire side). To connect to your Zigbee network, follow the menu-driven user guidance of your app. The luminaire does not belong to a ZigBee network at the factory. Select \"Add luminaire\" in your ZigBee app menu and follow the menu guidance. The network pairing starts automatically. The connected luminaire will blink 2 times while the luminaire automatically searches for a network for 15 seconds. After the luminaire is found and paired with the ZigBee network, the luminaire will blink 6 times and your luminaire will appear in the menu of your app. The light is now paired to the ZigBee network and can be controlled via your ZigBee app. To repeat the network pairing, turn the light off and on.
